ST-422M stepper motor driver for nema17,23stepper motor

Product Categories

Jiangsu Changzhou Sutai Electrical Appliance Co.,Ltd

Contact Now

Place of Origin : China

Brand Name : Sutai

Certification : ISO,CE,ROHS

Model Number : ST-422M

MOQ : 1

Price : 30

Packaging Details : EXPORT PACKING

Delivery Time : 3~30DAYS

Payment Terms : TT

Supply Ability : 10000SETS/PER MONTH

Contact Now

ST-422M stepper motor driver, 0.14A-2.1A, DC12-21V

Place of origin: Jiangsu, China (Mainland), Changzhou, China

Motor type: stepper motor

Certifications: CE and ISO 9001

RoHS Directive-compliant

Packing detail: export carton

Delivery time: 3-25 days

Payment terms: T/T, L/C, PayPal and Western Union

Supply ability: 100,000 pieces/month

Color: black

Product designation:

Step motor driver ST-422M is an electronic device designed to operate with 2 or 4-phase stepper motor with maximum current per phase up to 2.1A

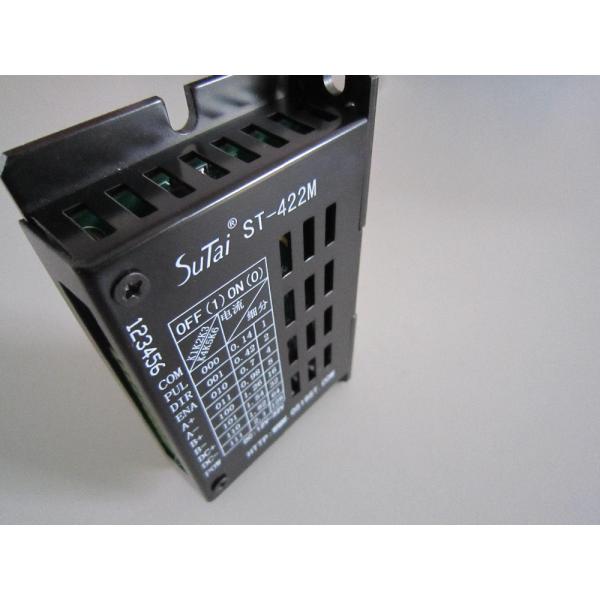

ST-422M stepper motor driver for nema17,23stepper motor

Port instructions

ST-422M Driver Pin Port Description
+COM	Positive signal input
PUL	Pulse signal input port
DIR	Direction of the signal input port
ENA	Offline enable signal input port
A+ A- B+ B-	Connection two-phase hybrid motor windings
+VDC GND	Input voltage DC
K1 , K2 , K3	Drive current selection
K4 , K5 , K6	Drive current selection

Note : 1,When the input signal is greater than 5V , Need PUL, ENA front end of resistance , General 12V plus 1.2K, 24V plus 2K resistance

Current setting(K1-K3)

Subdivision setting (K4-K6)

Subdivision

OFF

ST-422M stepper motor driver for nema17,23stepper motor Images
